Woodworking Chess Piece Patterns - Standard and Regulation Dimensions



Here's a collection of regulation and standard Chess pieces with their dimensions and patterns.  From the Pawn Piece to the Rook, they're all here.  The illustrations come in 2 versions one in inches and one in millimeters.  The front and side sectional views are presented.

Pawn Dimensions/Pattern

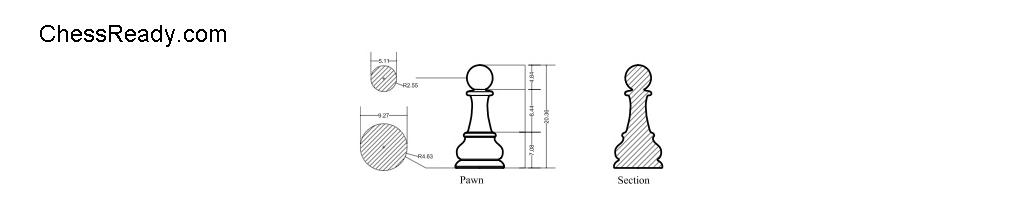

Chess Pawn Dimensions MM

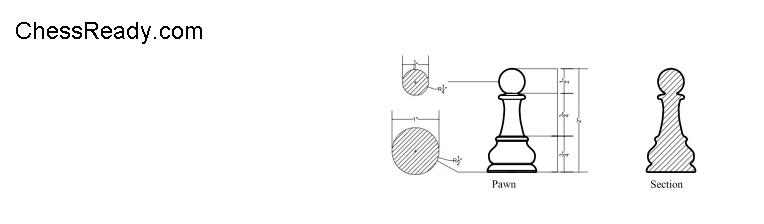

Pawn Piece outline in inches



Bishop Piece Dimensions/Pattern

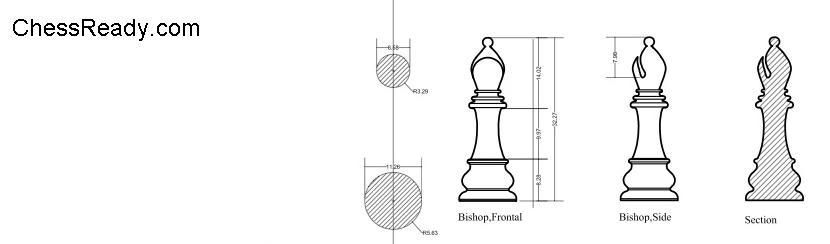

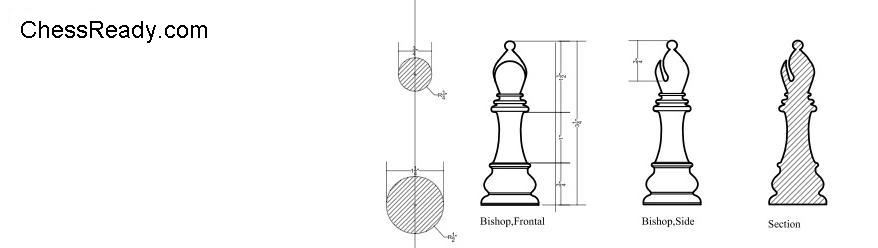

 Bishop dimensions in mmbishop dimensions in inches



Knight Piece Dimension and Pattern

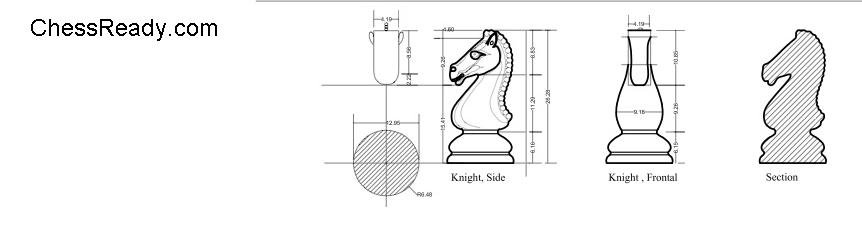

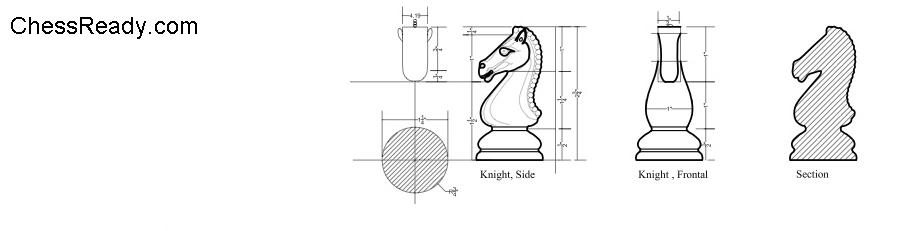

 knight outline in mmknight dimension in inches



Chess Rook Pattern and outline

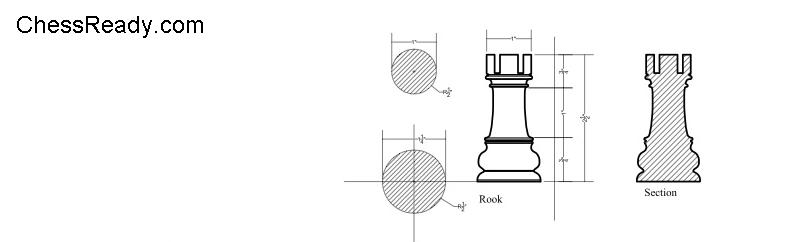

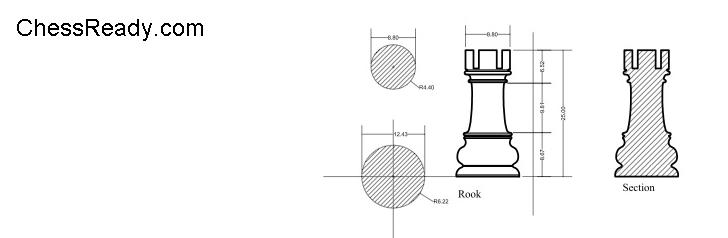

 chess piece dimensions - rookchess piece dimensions inches - rook



Chess King Outline and Woodworking pattern

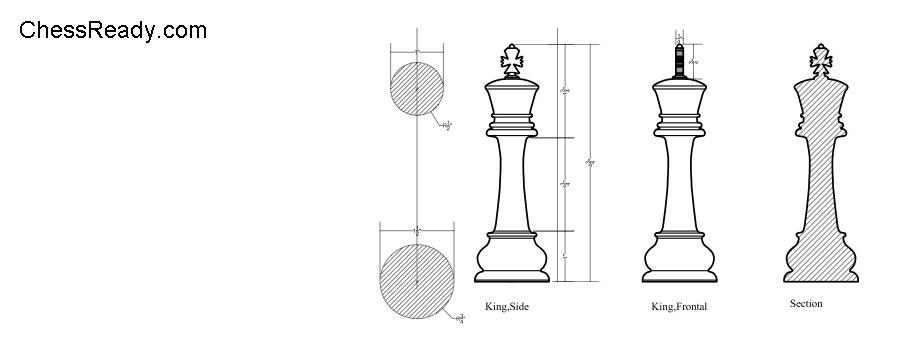

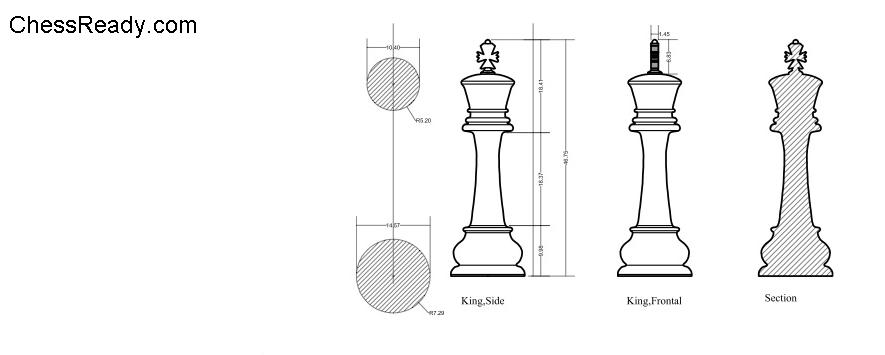

Chess piece king inches dimensionchess king pattern mm



Queen piece outline and Woodworking pattern.

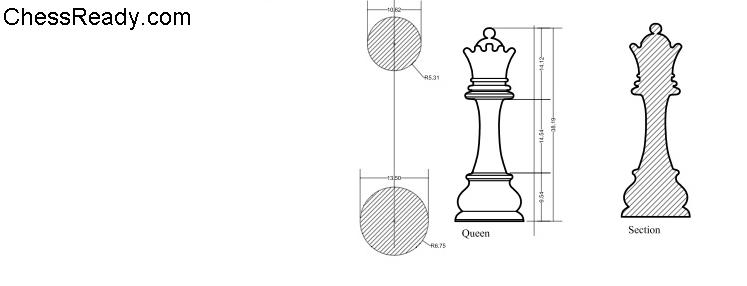

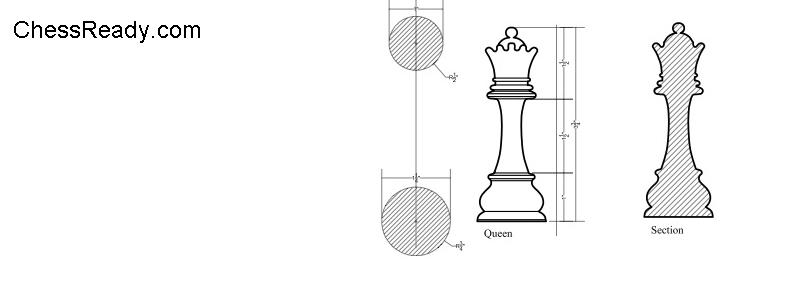

 chess piece queen inches dimensionschess queen piece inches dimensions
